Component Replacement

You can replace some ABP components with your custom components.

The reason that you can replace but cannot customize default ABP components is disabling or changing a part of that component can cause problems. So we named those components as Replaceable Components.

How to Replace a Component

Create a new component that you want to use instead of an ABP component. Add that component to declarations and entryComponents in the AppModule.

Then, open the app.component.ts and dispatch the AddReplaceableComponent action to replace your component with an ABP component as shown below:

import { ..., AddReplaceableComponent } from '@abp/ng.core'; // imported AddReplaceableComponent action
import { eIdentityComponents } from '@abp/ng.identity'; // imported eIdentityComponents enum
import { Store } from '@ngxs/store'; // imported Store
//...
export class AppComponent {
  constructor(..., private store: Store) {} // injected Store

  ngOnInit() {
    this.store.dispatch(
      new AddReplaceableComponent({
        component: YourNewRoleComponent,
        key: eIdentityComponents.Roles,
      }),
    );
    //...
  }
}

How to Replace a Layout

Each ABP theme module has 3 layouts named ApplicationLayoutComponent, AccountLayoutComponent, EmptyLayoutComponent. These layouts can be replaced with the same way.

A layout component template should contain <router-outlet></router-outlet> element.

The below example describes how to replace the ApplicationLayoutComponent:

Run the following command to generate a layout in angular folder:

yarn ng generate component shared/my-application-layout --export --entryComponent

# You don't need the --entryComponent option in Angular 9

Add the following code in your layout template (my-layout.component.html) where you want the page to be loaded.

<router-outlet></router-outlet>

Open the app.component.ts and add the below content:

import { ..., AddReplaceableComponent } from '@abp/ng.core'; // imported AddReplaceableComponent
import { eThemeBasicComponents } from '@abp/ng.theme.basic'; // imported eThemeBasicComponents enum for component keys
import { MyApplicationLayoutComponent } from './shared/my-application-layout/my-application-layout.component'; // imported MyApplicationLayoutComponent
import { Store } from '@ngxs/store'; // imported Store
//...
export class AppComponent {
  constructor(..., private store: Store) {} // injected Store

  ngOnInit() {
    // added below content
    this.store.dispatch(
      new AddReplaceableComponent({
        component: MyApplicationLayoutComponent,
        key: eThemeBasicComponents.ApplicationLayout,
      }),
    );

    //...
  }
}

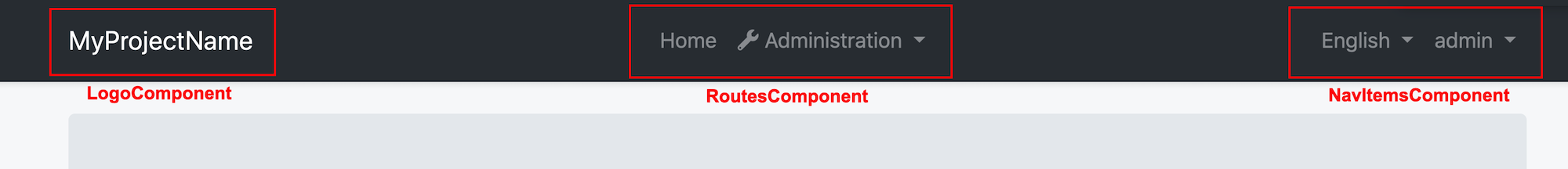

Layout Components

How to Replace LogoComponent

Run the following command in angular folder to create a new component called LogoComponent.

yarn ng generate component logo --inlineTemplate --inlineStyle --entryComponent

# You don't need the --entryComponent option in Angular 9

Open the generated logo.component.ts in src/app/logo folder and replace the content with the below:

import { Component } from '@angular/core';

@Component({
  selector: 'app-logo',
  template: `
    <a class="navbar-brand" routerLink="/">
      <!-- Change the img src -->
      <img
        src="https://via.placeholder.com/100x50/343a40/FF0000?text=MyLogo"
        alt="logo"
        width="100%"
        height="auto"
      />
    </a>
  `,
})
export class LogoComponent {}

Open app.component.ts in src/app folder and modify as shown below:

import { ..., AddReplaceableComponent } from '@abp/ng.core'; // imported AddReplaceableComponent
import { Store } from '@ngxs/store'; // imported Store
import { LogoComponent } from './logo/logo.component'; // imported NavItemsComponent
import { eThemeBasicComponents } from '@abp/ng.theme.basic'; // imported eThemeBasicComponents
//...

export class AppComponent implements OnInit {
  constructor(..., private store: Store) {} // injected Store

  ngOnInit() {
    //...

    // added dispatch
    this.store.dispatch(
      new AddReplaceableComponent({
        component: LogoComponent,
        key: eThemeBasicComponents.Logo,
      }),
    );
  }
}

The final UI looks like below:

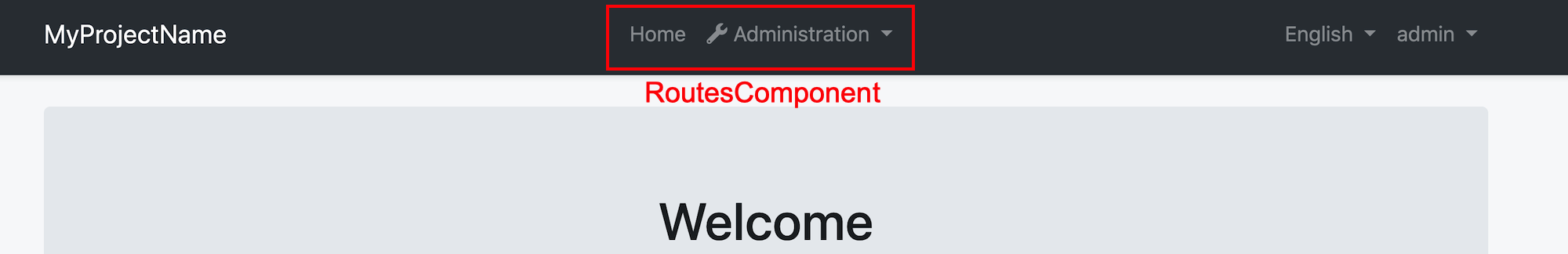

How to Replace RoutesComponent

Run the following command in angular folder to create a new component called RoutesComponent.

yarn ng generate component routes --entryComponent

# You don't need the --entryComponent option in Angular 9

Open the generated routes.component.ts in src/app/routes folder and replace the content with the below:

import { ABP, ReplaceableComponents } from '@abp/ng.core';
import {
  Component,
  HostBinding,
  Inject,
  Renderer2,
  TrackByFunction,
  AfterViewInit,
} from '@angular/core';
import { fromEvent } from 'rxjs';
import { debounceTime } from 'rxjs/operators';

@Component({
  selector: 'app-routes',
  templateUrl: 'routes.component.html',
})
export class RoutesComponent implements AfterViewInit {
  @HostBinding('class.mx-auto')
  marginAuto = true;

  smallScreen = window.innerWidth < 992;

  constructor(private renderer: Renderer2) {}

  ngAfterViewInit() {
    fromEvent(window, 'resize')
      .pipe(debounceTime(150))
      .subscribe(() => {
        this.smallScreen = window.innerWidth < 992;
      });
  }
}

Open the generated routes.component.html in src/app/routes folder and replace the content with the below:

<ul class="navbar-nav">
  <li class="nav-item">
    <a class="nav-link" routerLink="/"
      ><i class="fas fa-home"></i> {%{{{ '::Menu:Home' | abpLocalization }}}%}</a
    >
  </li>
  <li class="nav-item">
    <a class="nav-link" routerLink="/my-page"><i class="fas fa-newspaper mr-1"></i>My Page</a>
  </li>
  <li
    #navbarRootDropdown
    [abpVisibility]="routeContainer"
    class="nav-item dropdown"
    display="static"
    (click)="
      navbarRootDropdown.expand
        ? (navbarRootDropdown.expand = false)
        : (navbarRootDropdown.expand = true)
    "
  >
    <a class="nav-link dropdown-toggle" data-toggle="dropdown" href="javascript:void(0)">
      <i class="fas fa-wrench"></i>
      {%{{{ 'AbpUiNavigation::Menu:Administration' | abpLocalization }}}%}
    </a>
    <div
      #routeContainer
      class="dropdown-menu border-0 shadow-sm"
      (click)="$event.preventDefault(); $event.stopPropagation()"
      [class.d-block]="smallScreen && navbarRootDropdown.expand"
    >
      <div
        class="dropdown-submenu"
        ngbDropdown
        #dropdownSubmenu="ngbDropdown"
        placement="right-top"
        [autoClose]="true"
        *abpPermission="'AbpIdentity.Roles || AbpIdentity.Users'"
      >
        <div ngbDropdownToggle [class.dropdown-toggle]="false">
          <a
            abpEllipsis="210px"
            [abpEllipsisEnabled]="!smallScreen"
            role="button"
            class="btn d-block text-left dropdown-toggle"
          >
            <i class="fa fa-id-card-o"></i>
            {%{{{ 'AbpIdentity::Menu:IdentityManagement' | abpLocalization }}}%}
          </a>
        </div>
        <div
          #childrenContainer
          class="dropdown-menu border-0 shadow-sm"
          [class.d-block]="smallScreen && dropdownSubmenu.isOpen()"
        >
          <div class="dropdown-submenu" *abpPermission="'AbpIdentity.Roles'">
            <a class="dropdown-item" routerLink="/identity/roles">
              {%{{{ 'AbpIdentity::Roles' | abpLocalization }}}%}</a
            >
          </div>
          <div class="dropdown-submenu" *abpPermission="'AbpIdentity.Users'">
            <a class="dropdown-item" routerLink="/identity/users">
              {%{{{ 'AbpIdentity::Users' | abpLocalization }}}%}</a
            >
          </div>
        </div>
      </div>

      <div
        class="dropdown-submenu"
        ngbDropdown
        #dropdownSubmenu="ngbDropdown"
        placement="right-top"
        [autoClose]="true"
        *abpPermission="'AbpTenantManagement.Tenants'"
      >
        <div ngbDropdownToggle [class.dropdown-toggle]="false">
          <a
            abpEllipsis="210px"
            [abpEllipsisEnabled]="!smallScreen"
            role="button"
            class="btn d-block text-left dropdown-toggle"
          >
            <i class="fa fa-users"></i>
            {%{{{ 'AbpTenantManagement::Menu:TenantManagement' | abpLocalization }}}%}
          </a>
        </div>
        <div
          #childrenContainer
          class="dropdown-menu border-0 shadow-sm"
          [class.d-block]="smallScreen && dropdownSubmenu.isOpen()"
        >
          <div class="dropdown-submenu" *abpPermission="'AbpTenantManagement.Tenants'">
            <a class="dropdown-item" routerLink="/tenant-management/tenants">
              {%{{{ 'AbpTenantManagement::Tenants' | abpLocalization }}}%}</a
            >
          </div>
        </div>
      </div>
    </div>
  </li>
</ul>

Open app.component.ts in src/app folder and modify as shown below:

import { ..., AddReplaceableComponent } from '@abp/ng.core'; // imported AddReplaceableComponent
import { Store } from '@ngxs/store'; // imported Store
import { RoutesComponent } from './routes/routes.component'; // imported NavItemsComponent
import { eThemeBasicComponents } from '@abp/ng.theme.basic'; // imported eThemeBasicComponents
//...

export class AppComponent implements OnInit {
  constructor(..., private store: Store) {} // injected Store

  ngOnInit() {
    //...

    // added dispatch
    this.store.dispatch(
      new AddReplaceableComponent({
        component: RoutesComponent,
        key: eThemeBasicComponents.Routes,
      }),
    );
  }
}

The final UI looks like below:

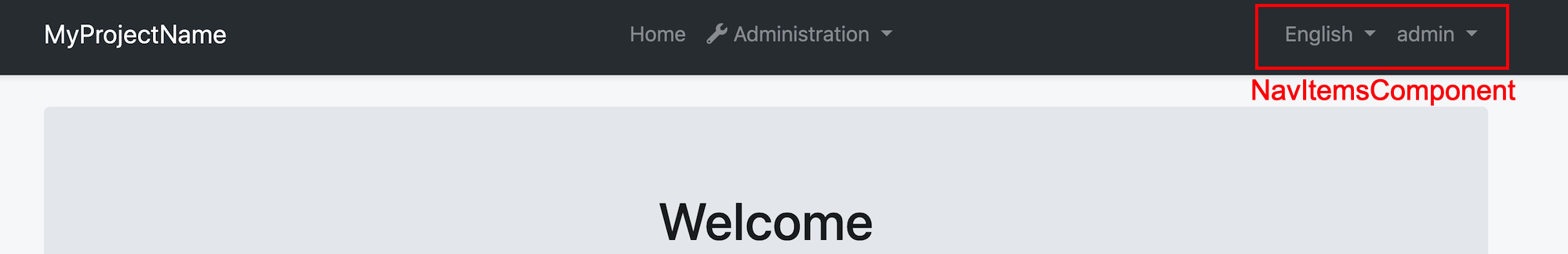

How to Replace NavItemsComponent

Run the following command in angular folder to create a new component called NavItemsComponent.

yarn ng generate component nav-items --entryComponent

# You don't need the --entryComponent option in Angular 9

Open the generated nav-items.component.ts in src/app/nav-items folder and replace the content with the below:

import {
  ApplicationConfiguration,
  AuthService,
  ConfigState,
  SessionState,
  SetLanguage,
} from '@abp/ng.core';
import { Component, AfterViewInit } from '@angular/core';
import { Navigate, RouterState } from '@ngxs/router-plugin';
import { Select, Store } from '@ngxs/store';
import { Observable, fromEvent } from 'rxjs';
import { map, debounceTime } from 'rxjs/operators';
import snq from 'snq';

@Component({
  selector: 'app-nav-items',
  templateUrl: 'nav-items.component.html',
})
export class NavItemsComponent implements AfterViewInit {
  @Select(ConfigState.getOne('currentUser'))
  currentUser$: Observable<ApplicationConfiguration.CurrentUser>;

  @Select(ConfigState.getDeep('localization.languages'))
  languages$: Observable<ApplicationConfiguration.Language[]>;

  smallScreen = window.innerWidth < 992;

  get defaultLanguage$(): Observable<string> {
    return this.languages$.pipe(
      map(
        languages =>
          snq(
            () => languages.find(lang => lang.cultureName === this.selectedLangCulture).displayName,
          ),
        '',
      ),
    );
  }

  get dropdownLanguages$(): Observable<ApplicationConfiguration.Language[]> {
    return this.languages$.pipe(
      map(
        languages =>
          snq(() => languages.filter(lang => lang.cultureName !== this.selectedLangCulture)),
        [],
      ),
    );
  }

  get selectedLangCulture(): string {
    return this.store.selectSnapshot(SessionState.getLanguage);
  }

  constructor(private store: Store, private authService: AuthService) {}

  ngAfterViewInit() {
    fromEvent(window, 'resize')
      .pipe(debounceTime(150))
      .subscribe(() => {
        this.smallScreen = window.innerWidth < 992;
      });
  }

  onChangeLang(cultureName: string) {
    this.store.dispatch(new SetLanguage(cultureName));
  }

  logout() {
    this.authService.logout().subscribe(() => {
      this.store.dispatch(
        new Navigate(['/'], null, {
          state: { redirectUrl: this.store.selectSnapshot(RouterState).state.url },
        }),
      );
    });
  }
}

Open the generated nav-items.component.html in src/app/nav-items folder and replace the content with the below:

<ul class="navbar-nav">
  <input type="search" placeholder="Search" class="bg-transparent border-0 text-white" />
  <li *ngIf="(dropdownLanguages$ | async)?.length > 0" class="nav-item">
    <div class="dropdown" ngbDropdown #languageDropdown="ngbDropdown" display="static">
      <a
        ngbDropdownToggle
        class="nav-link"
        href="javascript:void(0)"
        role="button"
        id="dropdownMenuLink"
        data-toggle="dropdown"
        aria-haspopup="true"
        aria-expanded="false"
      >
        {%{{{ defaultLanguage$ | async }}}%}
      </a>
      <div
        class="dropdown-menu dropdown-menu-right border-0 shadow-sm"
        aria-labelledby="dropdownMenuLink"
        [class.d-block]="smallScreen && languageDropdown.isOpen()"
      >
        <a
          *ngFor="let lang of dropdownLanguages$ | async"
          href="javascript:void(0)"
          class="dropdown-item"
          (click)="onChangeLang(lang.cultureName)"
          >{%{{{ lang?.displayName }}}%}</a
        >
      </div>
    </div>
  </li>

  <li class="nav-item">
    <ng-template #loginBtn>
      <a role="button" class="nav-link" routerLink="/account/login">{%{{{
        'AbpAccount::Login' | abpLocalization
      }}}%}</a>
    </ng-template>
    <div
      *ngIf="(currentUser$ | async)?.isAuthenticated; else loginBtn"
      ngbDropdown
      class="dropdown"
      #currentUserDropdown="ngbDropdown"
      display="static"
    >
      <a
        ngbDropdownToggle
        class="nav-link"
        href="javascript:void(0)"
        role="button"
        id="dropdownMenuLink"
        data-toggle="dropdown"
        aria-haspopup="true"
        aria-expanded="false"
      >
        {%{{{ (currentUser$ | async)?.userName }}}%}
      </a>
      <div
        class="dropdown-menu dropdown-menu-right border-0 shadow-sm"
        aria-labelledby="dropdownMenuLink"
        [class.d-block]="smallScreen && currentUserDropdown.isOpen()"
      >
        <a class="dropdown-item" routerLink="/account/manage-profile"
          ><i class="fa fa-cog mr-1"></i>{%{{{ 'AbpAccount::ManageYourProfile' | abpLocalization }}}%}</a
        >
        <a class="dropdown-item" href="javascript:void(0)" (click)="logout()"
          ><i class="fa fa-power-off mr-1"></i>{%{{{ 'AbpUi::Logout' | abpLocalization }}}%}</a
        >
      </div>
    </div>
  </li>
</ul>

Open app.component.ts in src/app folder and modify as shown below:

import { ..., AddReplaceableComponent } from '@abp/ng.core'; // imported AddReplaceableComponent
import { Store } from '@ngxs/store'; // imported Store
import { NavItemsComponent } from './nav-items/nav-items.component'; // imported NavItemsComponent
import { eThemeBasicComponents } from '@abp/ng.theme.basic'; // imported eThemeBasicComponents
//...

export class AppComponent implements OnInit {
  constructor(..., private store: Store) {} // injected Store

  ngOnInit() {
    //...

    // added dispatch
    this.store.dispatch(
      new AddReplaceableComponent({
        component: NavItemsComponent,
        key: eThemeBasicComponents.NavItems,
      }),
    );
  }
}

The final UI looks like below:

What's Next?

Custom Setting Page

16 KiB Raw Blame History

Component Replacement

How to Replace a Component

How to Replace a Layout

Layout Components

How to Replace LogoComponent

How to Replace RoutesComponent

How to Replace NavItemsComponent

What's Next?

16 KiB

Raw Blame History
