EF Core Advanced Database Migrations

This document begins by introducing the default structure provided by the application startup template and discusses various scenarios you may want to implement for your own application.

This document is for who want to fully understand and customize the database structure comes with the application startup template. If you simply want to create entities and manage your code first migrations, just follow the startup tutorials.

About the EF Core Code First Migrations

Entity Framework Core provides an easy to use and powerful database migration system. ABP Framework startup templates take the advantage of this system to allow you to develop your application in a standard way.

However, EF Core migration system is not so good in a modular environment where each module maintains its own database schema while two or more modules may share a single database in practical.

Since ABP Framework cares about modularity in all aspects, it provides a solution to this problem. It is important to understand this solution if you need to customize your database structure.

See EF Core's own documentation to fully learn the EF Core Code First Migrations and why you need to such a system.

The Default Solution & Database Configuration

When you create a new web application (with EF Core, which is the default database provider), your solution structure will be similar to the picture below:

Actual solution structure may be a bit different based on your preferences, but the database part will be same.

The Database Structure

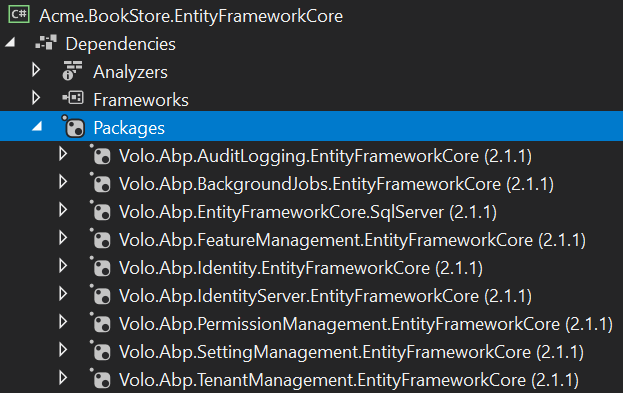

The startup template has some application modules pre-installed. Each layer of the solution has corresponding module package references. So, the .EntityFrameworkCore project has the NuGet references for the .EntityFrameworkCore packages of the used modules:

In this way, you collect all the EF Core dependencies under the .EntityFrameworkCore project.

In addition to the module references, it references to the Volo.Abp.EntityFrameworkCore.SqlServer package since the startup template is pre-configured for the SQL Server. See the documentation if you want to switch to another DBMS.

While every module has its own DbContext class by design and can use its own physical database, the solution is configured to use a single shared database as shown in the figure below:

This is the simplest configuration and suitable for most of the applications. appsettings.json file has a single connection string, named Default:

"ConnectionStrings": {
  "Default": "..."
}

So, you have a single database schema which contains all the tables of the modules sharing this database.

ABP Framework's connection string system allows you to easily set a different connection string for a desired module:

"ConnectionStrings": {
  "Default": "...",
  "AbpAuditLogging": "..."
}

The example configuration about tells to the ABP Framework to use the second connection string for the Audit Logging module.

However, this is just the beginning. You also need to create the second database, create audit log tables inside it and maintain the database tables using the code first approach. One of the main purposes of this document is to guide you on such database separation scenarios.

Module Tables

Every module uses its own databases tables. For example, the Identity Module has some tables to manage the users and roles in the system.

Table Prefixes

Since it is allowed to share a single database by all modules (it is the default configuration), a module typically uses a prefix to group its own tables.

The fundamental modules, like Identity, Tenant Management and Audit Logs, use the Abp prefix, while some other modules use their own prefixes. Identity Server module uses the IdentityServer prefix for example.

If you want, you can change the database table name prefix for a module for your application. Example:

Volo.Abp.IdentityServer.AbpIdentityServerDbProperties.DbTablePrefix = "Ids";

This code changes the prefix of the Identity Server module. Write this code at the very beginning in your application.

Every module also defines DbSchema property (near to DbTablePrefix), so you can set it for the databases support the schema usage.

The Projects

From the database point of view, there are three important projects those will be explained in the next sections.

.EntityFrameworkCore Project

This project has the DbContext class (BookStoreDbContext for this sample) of your application.

Every module uses its own DbContext class to access to the database. Likewise, your application has its own DbContext. You typically use this DbContext in your application code (in your custom repositories if you follow the best practices). It is almost an empty DbContext since your application don't have any entities at the beginning, except the pre-defined AppUser entity:

[ConnectionStringName("Default")]
public class BookStoreDbContext : AbpDbContext<BookStoreDbContext>
{
    public DbSet<AppUser> Users { get; set; }

    /* Add DbSet properties for your Aggregate Roots / Entities here. */

    public BookStoreDbContext(DbContextOptions<BookStoreDbContext> options)
        : base(options)
    {

    }

    protected override void OnModelCreating(ModelBuilder builder)
    {
        base.OnModelCreating(builder);

        /* Configure the shared tables (with included modules) here */

        builder.Entity<AppUser>(b =>
        {
            //Sharing the same table "AbpUsers" with the IdentityUser
            b.ToTable("AbpUsers");

            //Configure base properties
            b.ConfigureByConvention();
            b.ConfigureAbpUser();

            //Moved customization of the "AbpUsers" table to an extension method
            b.ConfigureCustomUserProperties();
        });

        /* Configure your own tables/entities inside the ConfigureBookStore method */
        builder.ConfigureBookStore();
    }
}

This simple DbContext class still needs some explanations:

• It defines a [ConnectionStringName] attribute which tells ABP to always use the Default connection string for this Dbcontext.
• It inherits from the AbpDbContext<T> instead of the standard DbContext class. You can see the EF Core integration document for more. For now, know that the AbpDbContext<T> base class implements some conventions of the ABP Framework to automate some common tasks for you.
• It declares a DbSet property for the AppUser entity. AppUser shares the same table (named AbpUsers by default) with the IdentityUser entity of the Identity module. The startup template provides this entity inside the application since we think that the User entity is generally needs to be customized in your application.
• The constructor takes a DbContextOptions<T> instance.
• It overrides the OnModelCreating method to define the EF Core mappings.
  • It first calls the the base.OnModelCreating method to let the ABP Framework to implement the base mappings for us.
  • It then configures the mapping for the AppUser entity. There is a special case for this entity (it shares a table with the Identity module), which will be explained in the next sections.
  • It finally calls the builder.ConfigureBookStore() extension method to configure other entities of your application.

This design will be explained in more details after introducing the other database related projects.

.EntityFrameworkCore.DbMigrations Project

As mentioned in the previous section, every module (and your application) have their own separate DbContext classes. Each DbContext class only defines the entity to table mappings related to its own module and each module (and your application) use the related DbContext class on runtime.

As you know, EF Core Code First migration system relies on a DbContext class to track and generate the code first migrations. So, which DbContext we should use for the migrations? The answer is none of them. There is another DbContext defined in the .EntityFrameworkCore.DbMigrations project (which is the BookStoreMigrationsDbContext for this example solution).

The MigrationsDbContext

The MigrationsDbContext is only used to create and apply the database migrations. It is not used on runtime. It merges all the entity to table mappings of all the used modules plus the application's mappings.

In this way, you create and maintain a single database migration path. However, there are some difficulties of this approach and the next sections explains how ABP Framework overcomes these difficulties. But first, see the BookStoreMigrationsDbContext class as an example:

/* This DbContext is only used for database migrations.
 * It is not used on runtime. See BookStoreDbContext for the runtime DbContext.
 * It is a unified model that includes configuration for
 * all used modules and your application.
 */
public class BookStoreMigrationsDbContext : AbpDbContext<BookStoreMigrationsDbContext>
{
    public BookStoreMigrationsDbContext(
        DbContextOptions<BookStoreMigrationsDbContext> options)
        : base(options)
    {

    }

    protected override void OnModelCreating(ModelBuilder builder)
    {
        base.OnModelCreating(builder);

        /* Include modules to your migration db context */
        builder.ConfigurePermissionManagement();
        builder.ConfigureSettingManagement();
        builder.ConfigureBackgroundJobs();
        builder.ConfigureAuditLogging();
        builder.ConfigureIdentity();
        builder.ConfigureIdentityServer();
        builder.ConfigureFeatureManagement();
        builder.ConfigureTenantManagement();

        /* Configure customizations for entities from the modules included  */
        builder.Entity<IdentityUser>(b =>
        {
            b.ConfigureCustomUserProperties();
        });

        /* Configure your own tables/entities inside the ConfigureBookStore method */
        builder.ConfigureBookStore();
    }
}

Sharing the Mapping Code

First problem is that: A module uses its own DbContext which needs to the database mappings. The MigrationsDbContext also needs to the same mapping in order to create the database tables for this module. We definitely don't want to duplicate the mapping code.

The solution is to define an extension method (on the ModelBuilder) that can be called by both DbContext classes. So, every module defines such an extension method.

For example, the builder.ConfigureBackgroundJobs() method call configures the database tables for the Background Jobs module. The definition of this extension method is something like that:

public static class BackgroundJobsDbContextModelCreatingExtensions
{
    public static void ConfigureBackgroundJobs(
        this ModelBuilder builder,
        Action<BackgroundJobsModelBuilderConfigurationOptions> optionsAction = null)
    {
        var options = new BackgroundJobsModelBuilderConfigurationOptions(
            BackgroundJobsDbProperties.DbTablePrefix,
            BackgroundJobsDbProperties.DbSchema
        );

        optionsAction?.Invoke(options);

        builder.Entity<BackgroundJobRecord>(b =>
        {
            b.ToTable(options.TablePrefix + "BackgroundJobs", options.Schema);

            b.ConfigureCreationTime();
            b.ConfigureExtraProperties();

            b.Property(x => x.JobName)
                .IsRequired()
                .HasMaxLength(BackgroundJobRecordConsts.MaxJobNameLength);

            //...
        });
    }
}

This extension method also gets options to change the database table prefix and schema for this module, but it is not important here.

The final application calls the extension methods inside the MigrationsDbContext class, so it can decide which modules are included to the database maintained by this MigrationsDbContext. If you want to create a second database and move some module tables to the second database, then you need to have a second MigrationsDbContext class which only calls the extension methods of the related modules. This topic will be detailed in the next sections.

The same ConfigureBackgroundJobs method is also called the DbContext of the Background Jobs module:

[ConnectionStringName(BackgroundJobsDbProperties.ConnectionStringName)]
public class BackgroundJobsDbContext
    : AbpDbContext<BackgroundJobsDbContext>, IBackgroundJobsDbContext
{
    public DbSet<BackgroundJobRecord> BackgroundJobs { get; set; }

    public BackgroundJobsDbContext(DbContextOptions<BackgroundJobsDbContext> options)
        : base(options)
    {

    }

    protected override void OnModelCreating(ModelBuilder builder)
    {
        base.OnModelCreating(builder);

        //Reuse the same extension method!
        builder.ConfigureBackgroundJobs();
    }
}

In this way, the mapping configuration of a module can be shared between DbContext classes.

Reusing a Table of a Module

You may want to reuse a table of a depended module in your application. In this case, you have two options:

1. You can directly use the entity defined by the module.
2. You can create a new entity mapping to the same database table.

Use the Entity Defined by a Module

Using an entity defined a module is pretty easy and standard. For example, Identity module defines the IdentityUser entity. You can inject the repository for the IdentityUser and perform the standard repository operations for this entity. Example:

using System;
using System.Threading.Tasks;
using Volo.Abp.DependencyInjection;
using Volo.Abp.Domain.Repositories;
using Volo.Abp.Identity;

namespace Acme.BookStore
{
    public class MyService : ITransientDependency
    {
        private readonly IRepository<IdentityUser, Guid> _identityUserRepository;

        public MyService(IRepository<IdentityUser, Guid> identityUserRepository)
        {
            _identityUserRepository = identityUserRepository;
        }

        public async Task DoItAsync()
        {
            //Get all users
            var users = await _identityUserRepository.GetListAsync();
        }
    }
}

This example injects the IRepository<IdentityUser, Guid> (default repository) which defines the standard repository methods and implements the IQueryable interface.

In addition, Identity module defines the IIdentityUserRepository (custom repository) that can also be injected and used by your application. IIdentityUserRepository provides additional custom methods for the IdentityUser entity while it does not implement the IQueryable interface.

Create a New Entity

Working with an entity of a module is easy if you want to use the entity as is. However, you may want to define your own entity class and map to the same database table in the following cases;

• You want to add a new field to the table and map it to a property in the entity. You can't use the module's entity since it doesn't have the related property.
• You want to use a subset of the table fields. You don't want to access to all properties of the entity and hide the unrelated properties (from a security perspective or just by design).
• You don't want to directly depend on a module entity class.

In any case, the progress is same. Assume that you want to create an entity, named AppRole, mapped to the same table of the IdentityRole entity of the Identity module.

Here, we will show the implementation, then will discuss the limitations (and reasons of the limitations) of this approach.

First, create a new AppRole class in your .Domain project:

using System;
using Volo.Abp.Domain.Entities;
using Volo.Abp.MultiTenancy;

namespace Acme.BookStore.Roles
{
    public class AppRole : AggregateRoot<Guid>, IMultiTenant
    {
        // Properties shared with the IdentityRole class

        public Guid? TenantId { get; private set; }
        public virtual string Name { get; protected internal set; }

        //Additional properties

        public string Title { get; set; }

        private AppRole()
        {

        }
    }
}

• It's inherited from the AggregateRoot<Guid> class and implements the IMultiTenant interface because the IdentityRole also does the same.
• You can add any properties defined by the IdentityRole entity. This examples add only the TenantId and Name properties since we only need them here.
• You can add custom (additional) properties. This example adds the Title property.
• The constructor is provide, so it is not allowed to directly create a new AppRole entity. Creating a role is a responsibility of the Identity module. You can query roles, set/update your custom properties, but you should not create or delete a role in your code, as a best practice (while there is nothing restricts you).

Now, it is time to define the EF Core mappings. Open the DbContext of your application (BookStoreDbContext in this sample) and add the following property:

public DbSet<AppRole> Roles { get; set; }

Then configure the mapping inside the OnModelCreating method (after calling the base.OnModelCreating(builder)):

protected override void OnModelCreating(ModelBuilder builder)
{
    base.OnModelCreating(builder);

    /* Configure the shared tables (with included modules) here */

    //CONFIGURE THE AppRole ENTITY
    builder.Entity<AppRole>(b =>
    {
        b.ToTable("AbpRoles");

        b.ConfigureByConvention();

        b.ConfigureCustomRoleProperties();
    });

    ...

    /* Configure your own tables/entities inside the ConfigureBookStore method */

    builder.ConfigureBookStore();
}

We added the following lines:

builder.Entity<AppRole>(b =>
{
    b.ToTable("AbpRoles");

    b.ConfigureByConvention();

    b.ConfigureCustomRoleProperties();
});

• It maps to the same AbpRoles table shared with the IdentityRole entity.
• ConfigureByConvention() configures the standard/base properties (like TenantId) and recommended to always call it.

ConfigureCustomRoleProperties() has not exists yet. Define it inside the BookStoreDbContextModelCreatingExtensions class (near to your DbContext in the EntityFrameworkCore project):

public static void ConfigureCustomRoleProperties<TRole>(this EntityTypeBuilder<TRole> b)
    where TRole : class, IEntity<Guid>
{
    b.Property<string>(nameof(AppRole.Title)).HasMaxLength(128);
}

• This method only defines the custom properties of your entity.
• Unfortunately, we can not utilize the fully type safety here (by referencing the AppRole entity). The best we can do is to use the Title name as type safe.

You've configured the custom property for your DbContext used by your application on the runtime. We also need to configure the MigrationsDbContext. Open the MigrationsDbContext (BookStoreMigrationsDbContext for this example) and change as shown below:

protected override void OnModelCreating(ModelBuilder builder)
{
    base.OnModelCreating(builder);

    /* Include modules to your migration db context */

    ...

    /* Configure customizations for entities from the modules included  */

    //CONFIGURE THE CUSTOM ROLE PROPERTIES
    builder.Entity<IdentityRole>(b =>
    {
        b.ConfigureCustomRoleProperties();
    });

    ...

    /* Configure your own tables/entities inside the ConfigureBookStore method */

    builder.ConfigureBookStore();
}

Only added the following lines:

builder.Entity<IdentityRole>(b =>
{
    b.ConfigureCustomRoleProperties();
});

In this way, we re-used the extension method that is used to configure custom property mappings for the role. But, this time, did the same customization for the IdentityRole entity.

Now, you can add a new EF Core database migration using the standard Add-Migration command in the Package Manager Console (remember to select .EntityFrameworkCore.DbMigrations as the Default Project in the PMC):

This command will create a new code first migration class as shown below:

public partial class Added_Title_To_Roles : Migration
{
    protected override void Up(MigrationBuilder migrationBuilder)
    {
        migrationBuilder.AddColumn<string>(
            name: "Title",
            table: "AbpRoles",
            maxLength: 128,
            nullable: true);
    }

    protected override void Down(MigrationBuilder migrationBuilder)
    {
        migrationBuilder.DropColumn(
            name: "Title",
            table: "AbpRoles");
    }
}

All done! Just run the Update-Database command in the PMC or run the .DbMigrator project in your solution to apply changes to database.

Discussion of an Alternative Scenario: Every Module Manages Its Own Migration Path

TODO
