Send Real-time Notifications via SignalR in ABP Project
SignalR is an open source library that adds real-time operation functionality to applications. Real-time web functionality enables server-side code to instantly send content to clients without refreshing the page. I'll show you how to add SignalR and use it to send notifications from backend. I'll implement this functionality in MVC template of ABP Framework.
Implement Backend
Create Notification Hub
Create a new folder named SignalR in your root directory of your Web project.
Then add the following classes to the folder:
Configure Module
These 3 steps will be done in your web module class.
1- Add SignalR
Open YourProjectWebModule.cs class and add the following line to the PreConfigureServices method:
context.Services.AddSignalR();
2- Add Client Scripts
2- In the ConfigureServices method of your web module add the following code to add the signalr.js and notification-hub.js. We'll add these packages in the next steps.

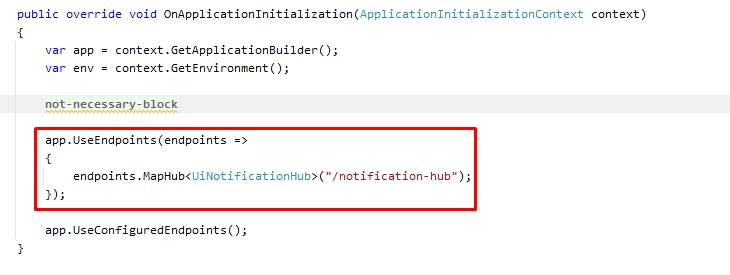

3- Add Hub Endpoint
Add the following code to add the notification hub endpoint in OnApplicationInitialization method:
app.UseEndpoints(endpoints =>
{
endpoints.MapHub<UiNotificationHub>("/notification-hub");
});
Implement Frontend
We'll write the client-side code to be able to handle the SignalR response.
1- Add Notification Hub
Add the following JavaScript class into your Pages folder in your Web project. We already added this script to our global scripts.
2- Add SignalR NPM package
Add Microsoft.SignalR JavaScript package to the package.json which is located in your root folder of the Web project. After you add it, run yarn command in your Web directory to be able to install this package.
3- Add resource Mapping
We added SignalR to the package.json but it comes into your node_modules folder. We need to copy the related files to wwwroot/libs folder. To do this copy the content of the following file to your abp.resourcemappings.js file. It's in your root directory of Web folder. After you do this, go to your web directory and run gulp command. By doing this, it'll copy the related files into your wwwroot/libs folder.
4- Usage
We have completed the implementation part. Let's check if it's running...
To do this easily, open your Index.cshtml which is in the Pages folder of your Web project. And replace the content with the following. Also replace the Index.cshtml.cs as well.
5- See it in action
Run your web project and in the Index page you'll see a button named as "Get Notification". Click the button and see the notification that comes from SignalR. This is a basic usage of SignalR notification system. You can implement it according to your own requirements.
