How to Integrate the Syncfusion MVC Components to the ABP MVC UI?

Introduction

Hi, in this step by step article we will see how we can integrate the Syncfusion MVC Components to our ABP MVC UI.

Source Code

You can find the source code of the application at https://github.com/EngincanV/ABP-Syncfusion-Components-Demo.

Prerequisites

• .NET 6

  • In this article, I will create a new startup template in v5.0.0-rc.2 and if you follow this article from top to end and create a new startup template with me, you need to install the .NET 6 SDK before starting.

Also update your ABP CLI to the v5.0.0-rc.2, you can use the below command to update your CLI version:

dotnet tool update Volo.Abp.Cli -g --version 5.0.0-rc.2

or install if you haven't installed before:

dotnet tool install Volo.Abp.Cli -g --version 5.0.0-rc.2

Creating the Solution

In this article, I will create a new startup template with EF Core as a database provider and MVC for UI framework. But if you already have a project with MVC UI, you don't need to create a new startup template, you can directly implement the following steps to your existing project.

If you already have a project, you can skip this section.

We can create a new startup template by using the ABP CLI:

abp new SyncfusionComponentsDemo -t app --preview

Our project boilerplate will be ready after the download is finished. Then, we can open the solution and start developing.

Starting the Development

Pre-requisite

If you've already had a license from Syncfusion, you can skip this section and starts with Step 1.

• First thing we need to do is creating an account to be able to get license from Syncfusion. Let's navigate to https://www.syncfusion.com/aspnet-core-ui-controls and click the "Download Free Trial" button.

• Then fill the form and starts your 30-day free trial.

• After that, navigates to https://www.syncfusion.com/account/manage-trials/downloads to get our license key that will be used in our application.

click the "Get License Key" link for "ASP.NET Core (Essential JS 2)".

Then a modal will be open like above, select the version and click the "Get License Key" button.

• Lastly, copy the generated license key value. This license key will be used in our application, to let Syncfusion check do our license is not expired and valid.

Step 1 (Configurations)

After providing a license key from Syncfusion, we can start with configuration thats need to be done in our application.

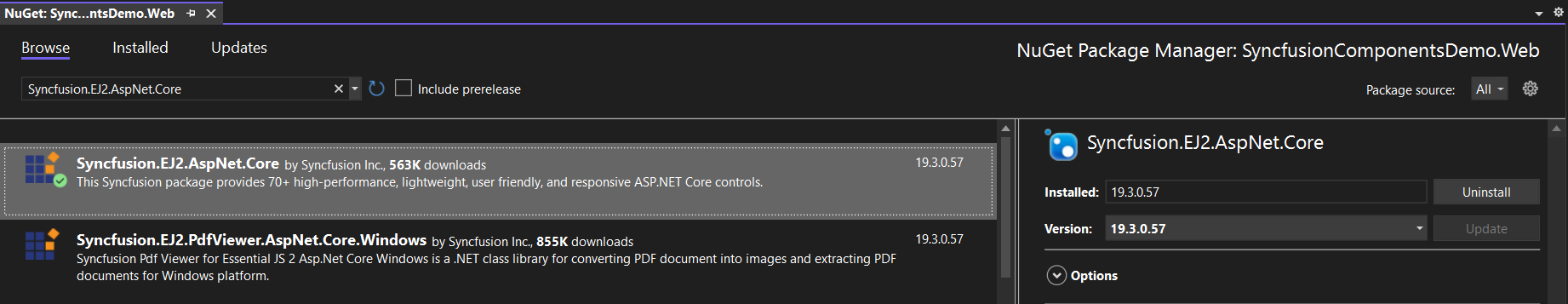

• We need to install the Syncfusion.EJ2.AspNet.Core Nuget package to our Web project (*.Web).

• After installing the package, we need to register our license key to be able to use the Syncfusion Components.

• To register the license key, open your web module class and update the ConfigureServices methods as follows:

public override void ConfigureServices(ServiceConfigurationContext context)
{
    var hostingEnvironment = context.Services.GetHostingEnvironment();
    var configuration = context.Services.GetConfiguration();

    //Register Syncfusion license
    Syncfusion.Licensing.SyncfusionLicenseProvider.RegisterLicense(licenseKey: configuration["Syncfusion:LicenseKey"]);

    ConfigureUrls(configuration);
    ConfigureBundles();
    ConfigureAuthentication(context, configuration);
    ConfigureAutoMapper();
    ConfigureVirtualFileSystem(hostingEnvironment);
    ConfigureLocalizationServices();
    ConfigureNavigationServices();
    ConfigureAutoApiControllers();
    ConfigureSwaggerServices(context.Services);
}

Instead of writing the license key in here we can define it in appsettings.json file and use it in here by using the Configuration system of .NET.

• Open your appsettings.json file and add a new section named "Syncfusion":

{
  //...

  "Syncfusion": {
    "LicenseKey": "<your-license-key>"
  }
}

Replace the <your-license-key> part with your license key that we've obtained in the previous section.

• To be able to use the Syncfusion Components we need to define it as tag helper in our _ViewImports.cshtml file. By doing that we can use the Syncfusion components everywhere in our application.

• So open your /Pages/_ViewImports.cshtml file and add a new tag helper:

@addTagHelper *, Microsoft.AspNetCore.Mvc.TagHelpers
@addTagHelper *, Volo.Abp.AspNetCore.Mvc.UI
@addTagHelper *, Volo.Abp.AspNetCore.Mvc.UI.Bootstrap
@addTagHelper *, Volo.Abp.AspNetCore.Mvc.UI.Bundling
@addTagHelper *, Syncfusion.EJ2 //use Syncfusion components

Step 2 - (Add styles and script to our application)

• Last thing we need to do is, add some style and script files that provided by Syncfusion, between to our head-body tags.

• We can do this by creating two view component (one for Styles and other for Scripts). Let's do that.

First, create folder structure like below under the Components folder.

Then open the related files and add the following codes to each of these files.

• Default.cshtml (/Components/Syncfusion/Script/Default.cshtml)

@addTagHelper *, Syncfusion.EJ2 //add this line

<!-- Syncfusion Essential JS 2 Scripts -->
<script src="https://cdn.syncfusion.com/ej2/dist/ej2.min.js"></script>

<!-- Syncfusion Essential JS 2 ScriptManager -->
<ejs-scripts></ejs-scripts>

• SyncfusionScriptComponent.cs

using Microsoft.AspNetCore.Mvc;
using Volo.Abp.AspNetCore.Mvc;

namespace SyncfusionComponentsDemo.Web.Components.Syncfusion.Script
{
    public class SyncfusionScriptComponent : AbpViewComponent
    {
        public IViewComponentResult Invoke()
        {
            return View("~/Components/Syncfusion/Script/Default.cshtml");
        }
    }
}

• Default.cshtml (/Components/Syncfusion/Style/Default.cshtml)

<!-- Syncfusion Essential JS 2 Styles -->
<link rel="stylesheet" href="https://cdn.syncfusion.com/ej2/material.css" />

• SyncfusionStyleComponent.cs

using Microsoft.AspNetCore.Mvc;
using Volo.Abp.AspNetCore.Mvc;

namespace SyncfusionComponentsDemo.Web.Components.Syncfusion.Style
{
    public class SyncfusionStyleComponent : AbpViewComponent
    {
        public IViewComponentResult Invoke()
        {
            return View("~/Components/Syncfusion/Style/Default.cshtml");
        }
    }
}

After creating these two components, we can use the Layout Hooks system of ABP to inject this two components between head and script tags.

To do this, open your web module class and update the ConfigureServices method as below:

public override void ConfigureServices(ServiceConfigurationContext context)
{
    var hostingEnvironment = context.Services.GetHostingEnvironment();
    var configuration = context.Services.GetConfiguration();

    //Register Syncfusion license
    var licenseKey = configuration["Syncfusion:LicenseKey"].ToString();
    Syncfusion.Licensing.SyncfusionLicenseProvider.RegisterLicense(licenseKey: licenseKey);

    Configure<AbpLayoutHookOptions>(options =>
    {
        //Now, the SyncfusionStyleComponent code will be inserted in the head of the page as the last item.
        options.Add(LayoutHooks.Head.Last, typeof(SyncfusionStyleComponent));

        //the SyncfusionScriptComponent will be inserted in the body of the page as the last item.
        options.Add(LayoutHooks.Body.Last, typeof(SyncfusionScriptComponent));
    });

    ConfigureUrls(configuration);
    ConfigureBundles();
    ConfigureAuthentication(context, configuration);
    ConfigureAutoMapper();
    ConfigureVirtualFileSystem(hostingEnvironment);
    ConfigureLocalizationServices();
    ConfigureNavigationServices();
    ConfigureAutoApiControllers();
    ConfigureSwaggerServices(context.Services);
}

After injecting the Syncfusion style and script into our application our configurations have been completed. We can try with a simple component to see if it works as we expected.

Let's try with the Calendar component. Open your Index.cshtml file and update with the below content:

@page
@using Microsoft.AspNetCore.Mvc.Localization
@using SyncfusionComponentsDemo.Localization
@using Volo.Abp.Users
@model SyncfusionComponentsDemo.Web.Pages.IndexModel

@section styles {
	<abp-style src="/Pages/Index.css" />
}

@section scripts {
	<abp-script src="/Pages/Index.js" />
}

<div class="container">
	<h2>Syncfusion - Calendar Component</h2>
	<ejs-calendar id="calendar"></ejs-calendar>
</div>

• Then when we run the application, we need to see the relevant calendar component as below.

---

See the Syncfusion Components in Action

//TODO: create a todo application and show some components.
